Informazioni di Base.
Model No.
VR
Tecnologia di visualizzazione
TFT
Tipo DOT-Matrix modulo LCD grafico
Riga / colonna-Driven
Modalità Drive LCD
Multiplex Modulo LCD Unità
Su misura
Su misura
colore
bianco
peso
200 g.
fatto
2023
dimensioni del display
5 pollici
Pacchetto di Trasporto
Carton
Specifiche
200x200x200CM
Marchio
jinchao
Origine
China
Capacità di Produzione
10000
Descrizione del Prodotto
Overview
Essential details
Type:
Display Size:
Supplier Type:
Place of Origin:
Brand Name:
resolution:
viewing direction:
Can be customized:
Storage Temperature:
Brightness:
outline dimension:
AA:
driver IC:
Interface:
TFT, TFT
Display Size:
5inch
Supplier Type:
lcm
Place of Origin:
Guangdong, China
Brand Name:
Kingtech
resolution:
800x480
viewing direction:
12 O'clock
Can be customized:
OEM and ODM welcome
Storage Temperature:
-30ºC~80ºC
Brightness:
500nits
outline dimension:
120.7(W)*75.8(H)*2.9(T)
AA:
108(W)*64.80(H)
driver IC:
ILI6122+ILI5960
Interface:
24-bit Parallel RGB Interface
Supply Ability
Supply Ability
8000000 Piece/Pieces per Month
8000000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Carton
Port
shenzhen / hongkong

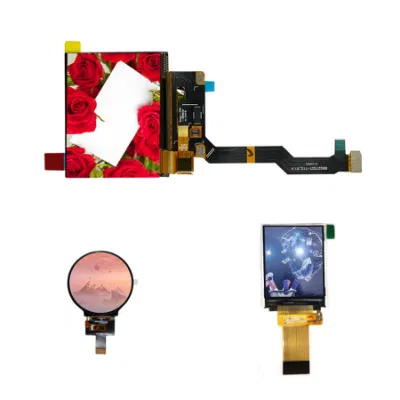

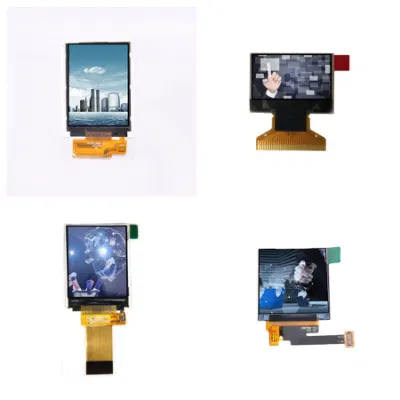

Picture Example:
Lead time:
Carton
Port
shenzhen / hongkong

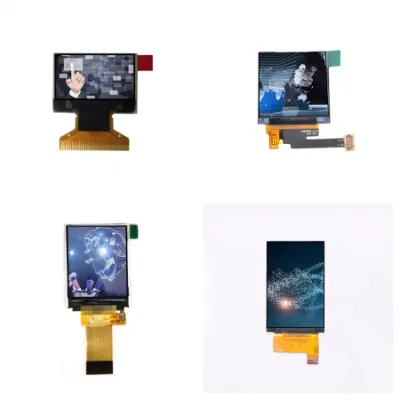

Picture Example:
Lead time:
| Quantity(pieces) | 1 - 10 | 11 - 1000 | 1001 - 3000 | >3000 |
| Lead time (days) | 7 | 21 | 23 | To be negotiated |
For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. MIPI, LVDS, RGB interface; USB and I2C capacitive touch, HDMI board For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness.
Product Description
| Module Display Main Parameters | |
| Item | kingtech 10.1 inch ips1280x800 display |
| Model No. | PV10109LZR40G |
| Resolution | 1280 x 800 |
| Outline Dimension | 229.80(W) x 149.00(H) x 5.95(T) |
| Active Area(mm) | 216.96(W) x 135.60(H) |
| Interface | 8-BIT LVDS Interface |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -30ºC to +80ºC |
| Storage Temperature | -30ºC to +80ºC |
| Brightness | 1000nits |
| Touch screen | I2C / USB capacitive touch screen |
| Board | HDMI board |
Product Description
| Item | 500nit/1000 nit 5 inch tft lcd display |
| Model No | PV0502LZR40D |
| Resolution | 800*480 |
| Outline Dimension | 120.7*75.8*2.9 |
| Active Area(mm) | 108*64.80 |
| Interface | 24-bit Parallel RGB |
| Viewing Angle | 12 o'clock |
| Driving IC | ILI6122+ILI5960 |
| Display Mode | Transmission / Normally White |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| Brightness | 500nits / 1000nits |
| Touch screen | Resistive / capacitive touch screen |
| Board | HDMI board |
